Introduction

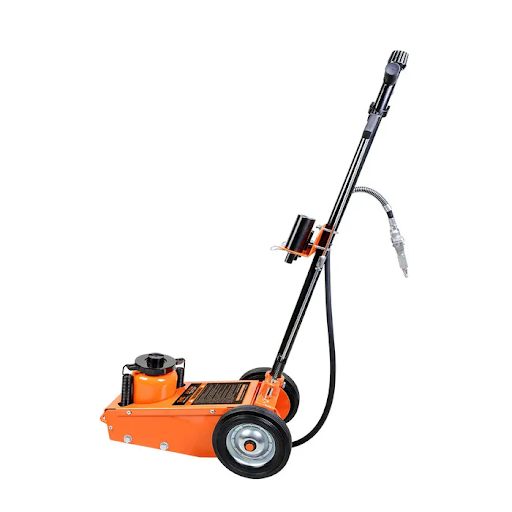

In truck shops, fleet garages, and agricultural workshops across the United States, lifting a heavy axle is a daily necessity and a serious responsibility. A loaded trailer or a large tractor can weigh many tons, and raising it by hand is slow and exhausting. An air hydraulic axle jack combines two proven technologies to make that lift fast, controlled, and far less tiring, which is why it has become a staple of any shop that services heavy vehicles.
Two Technologies Working Together
The tool joins a pneumatic system to a hydraulic one. Shop compressed air drives an internal pump, and that pump pressurizes hydraulic fluid, which in turn raises the lifting ram. The advantage of this pairing is leverage. Air alone could not lift such loads, and a purely manual hydraulic jack would demand many slow strokes of a handle, but combining them lets a worker raise twenty tons or more with the press of a control, while a manual backup still allows precise final positioning.
Understanding Hydraulic Force
The hydraulic heart of the jack relies on a simple principle of physics: pressure applied to a confined fluid is transmitted equally throughout it. A small piston driven by air pressure acts on the fluid, and that pressure pushes a much larger ram upward, multiplying the force. This is how a modest supply of compressed air becomes enough to lift a fully loaded axle. The fluid does the heavy work, and the operator simply manages the flow.
Features That Support Safe Lifting
A quality axle jack includes features that protect both the operator and the vehicle. Sound practice rests on using them correctly:

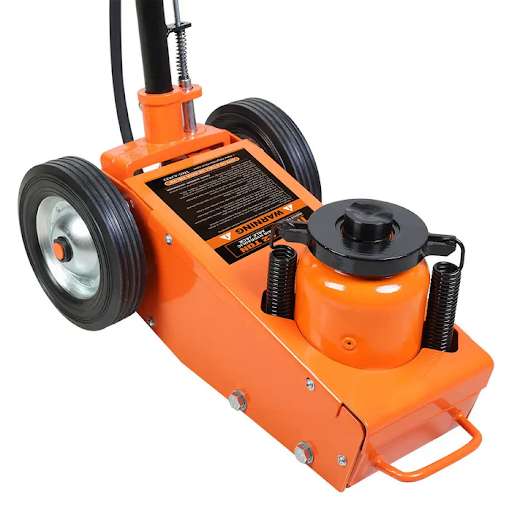

- An air filter keeps grit out of the pneumatic system so it works reliably over time.
- Tension springs retract the ram smoothly and help control the descent.
- A generous lifting height clears tall tires and suspensions to reach the axle.
No jack, however capable, should ever be the only thing supporting a raised vehicle.
Safety First, Always
Lifting heavy loads is among the most dangerous tasks in any shop, and the cardinal rule is simple. A jack is a lifting device, not a holding device. Once the axle is raised, properly rated jack stands must take the weight before anyone goes near or under the vehicle. The work should be done on firm, level ground, the load should be chocked against rolling, and the jack should be inspected for leaks or damage before each use. These habits prevent the great majority of lifting accidents.
Advantages and Limitations
An air hydraulic axle jack offers clear strengths, with limits worth respecting:
- It lifts very heavy loads quickly with little physical effort, using shop air for speed and a manual option for control.
- It depends on a supply of compressed air, and it must always be paired with jack stands, since it is never a safe means of holding a load.
Choosing and Maintaining a Jack
Choosing an axle jack starts with the heaviest load it will ever face, with a sensible margin held in reserve, since a jack worked at the very edge of its rating wears quickly and offers no safety buffer. The lifting height matters too, because the jack must clear tall tyres and high suspensions to reach the axle on a large truck or tractor. Build quality decides how long the tool lasts, as a heavy frame and quality seals resist the leaks and bending that retire a cheap jack early. Maintenance is straightforward but important. The hydraulic fluid should be kept clean and topped up, the air filter checked so grit cannot foul the pump, and the ram wiped and lightly oiled to prevent corrosion. A jack inspected before each use, with any leak or damage addressed at once, stays both powerful and predictable, which is exactly what a tool entrusted with such heavy loads must be.
Industry Outlook
As trucks, trailers, and agricultural machinery grow heavier and fleets demand faster turnaround, the need for powerful, dependable lifting equipment continues to rise across American workshops. The air hydraulic axle jack endures because it pairs raw lifting power with everyday practicality. Shops that choose a well-built axle jack backed by reliable heavy-duty lifting solutions gain a tool that speeds heavy repairs while supporting the safe working practices that protect their technicians for many years to come.
